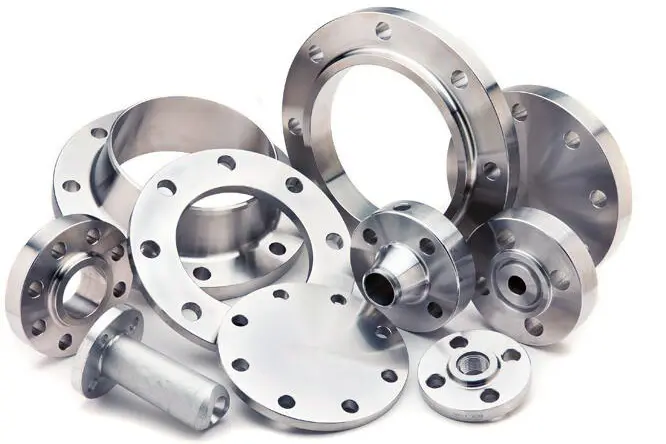

Flanges
TYPES: Weld Neck, Slip On, Socket Weld, Lap Joint Threaded, Blind, Reducing & Spectacle Plate
DIMENSIONAL/TOLERANCE STANDARD:
ASME, ANSI B16.5, MSS SP-44 B16, 47A, ΑΡΙ 605 816, 47B, DIN, AWWA
SIZE RANGE: 1/2" to 48"
PRESSURE RATING:
#150, #300, #600, #900, #1500 & #2500
WALL THICKNESS: From Schedule S-10 to S-XXS
MATERIALS: ASTM A105, A182 Gr. F304/L, A350 LF2, A694-F42 to F70 (Other Grades available on Request)
Galvanizing (Electro or Hot Dip) can be provided.
Butt Weld Fittings
TYPE: Seamless & Welded
DIMENSIONAL/TOLERANCE STANDARDS:
ASME, ANSI B16.9/B16.28/MSS Sp75
SIZE RANGE: 1/2" to 48"
WALL THICKNESS: From Sch 10 to Sch-xxs.
MATERIALS: A234-WPB & WP5, WP9, WP11,WP22
A420-WPL3/WPL6,
A403-WP304/LWP316/L
A860-WPHY 42-46/52-60/65-70
Special Materials such as Monel, Inconel, Cu-Ni, Duplex SS etc are available on request
COATINGS: Special Coating i.e. Cement Mortat Lining, FBE Coating Galvanized (Hot Dipped & Electro-Plating) PTFE coating etc, can be provided

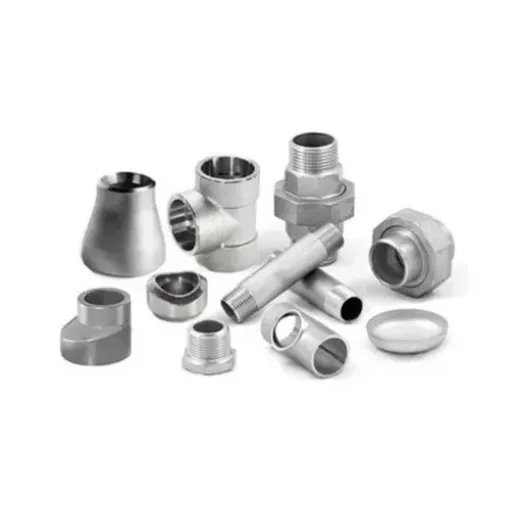

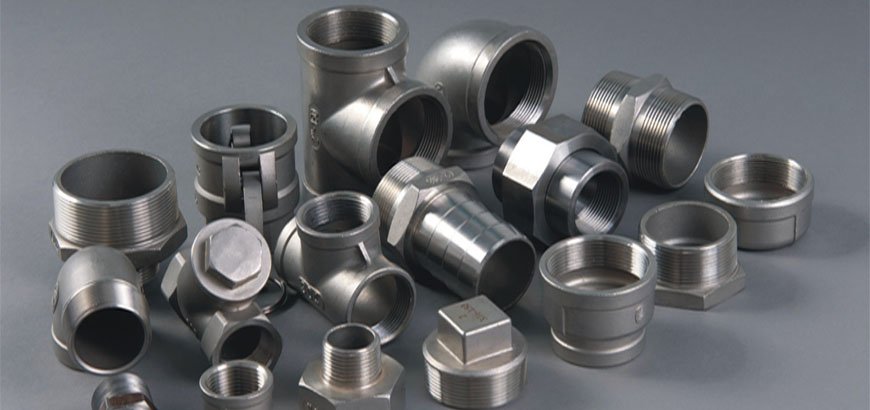

FORGED STEEL FITTINGS
SIZE RANGE: 1/2" to 4"
DIMENSIONAL/TOLERANCE STANDARD:
ASME, ANSI B16, 11
PRESSURE RATING: #2000, #3000, #6000, #6000, #9000 Threaded and Socket Weld
MATERIALS: ASTM A105, A182 Gr. F304/L,A350 LF2,
A694-F42 to F70 (Other Grades available on Request) Black / Galvanized Fittings (Electro and Hot Dip)
TYPES: Gate Valve, Globe Valve, Check Valve, Ball Valve, in Forged & Cast Steel
STANDARD:
ASME B16.34, B16.10, API SPECS
SIZE RANGE: 1/2" to 24"
PRESSURE RATING:
#150, #300, #600
MATERIALS: ASTM A105, A182, A216 WCB/WCC,
A217,A315,A352,A351 CF8/CF8M
TRIM MATERIAL:
13% Cr, SS304, SS310, Ss316, Monel, Alloy 20

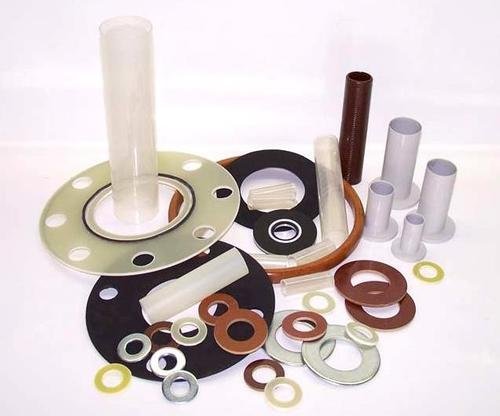

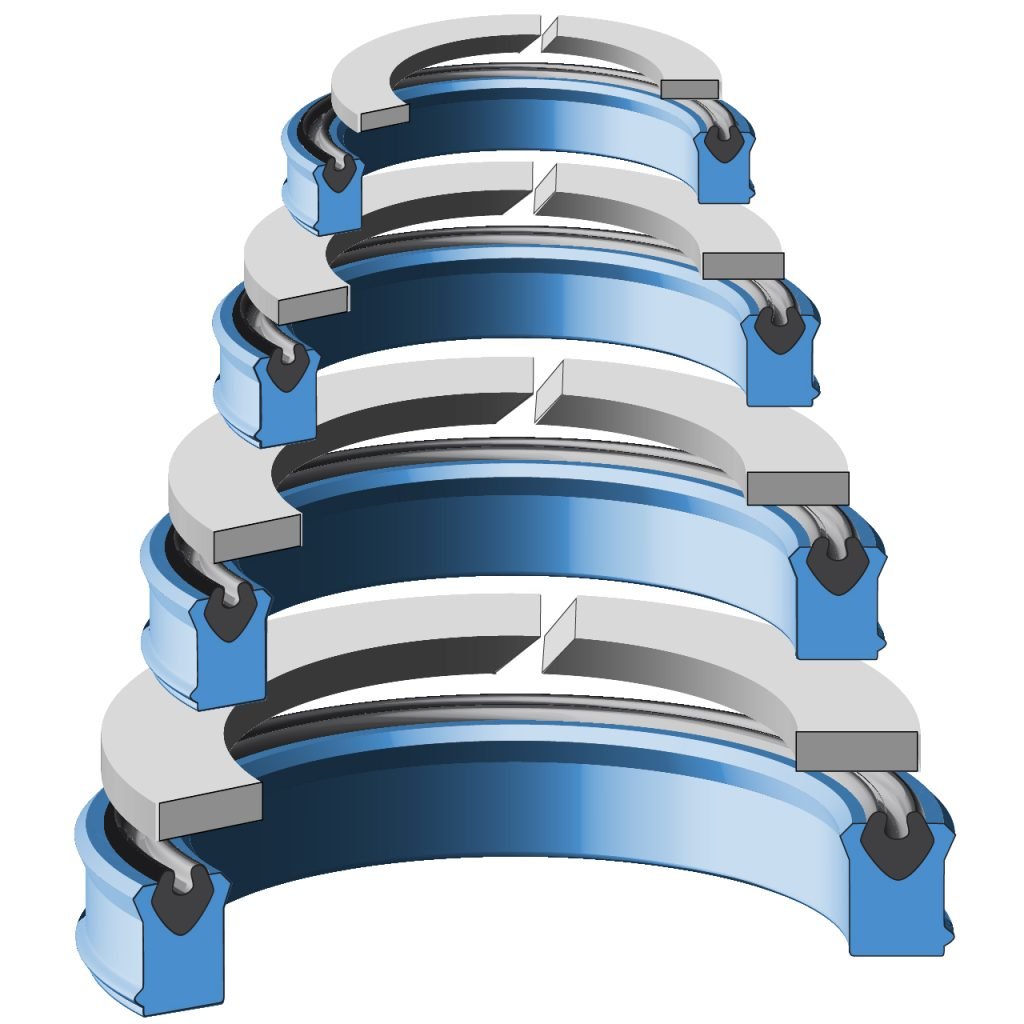

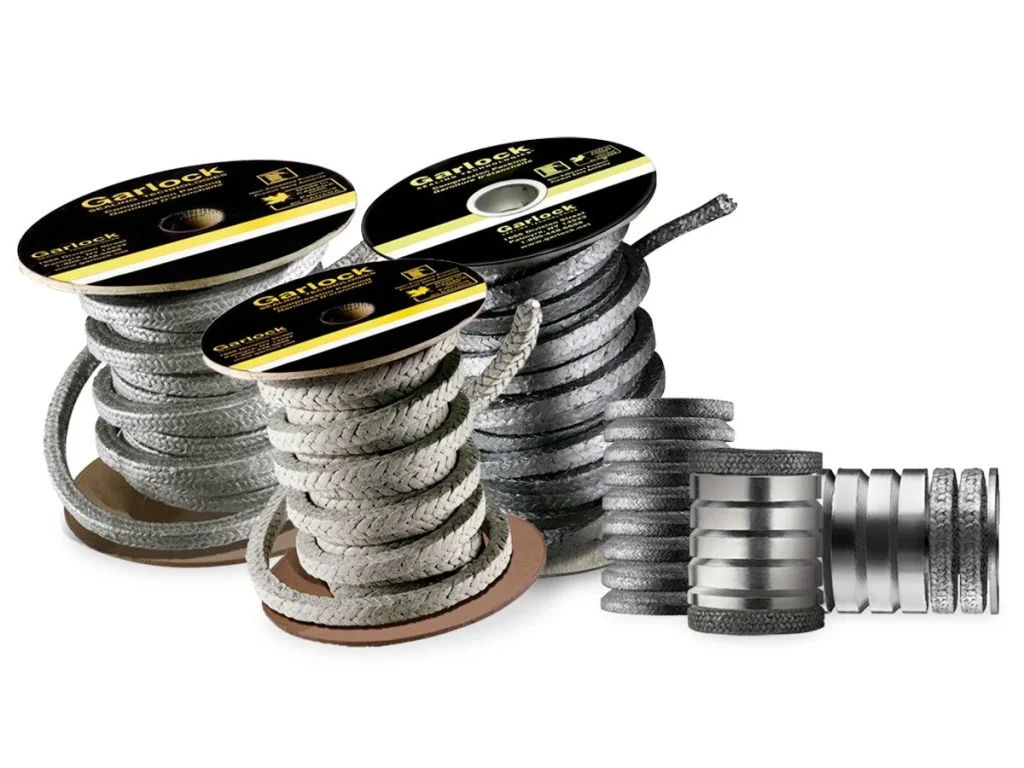

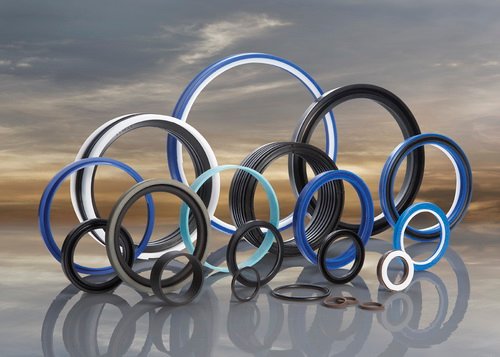

GASKETS, KITS, PACKINGS
Definition & Application:
Any of a wide variety of seals or packings used between matched machine parts or around pipe joints to prevent the escape of a gas or fluid.
OTHERS
Stud Bolt:
Alloy bolting material for high temperature service
Specification:
ASTMA 193 B7, B7M, B8, B8M
Carbon & Alloy steel nuts for bolts for high pressure & High temperature service
Specification: ASTM A194GR2H, 2HM, 8, 8MM
Other Accessories: Gaskets, Insulation Flange Kits,
Drip Rings

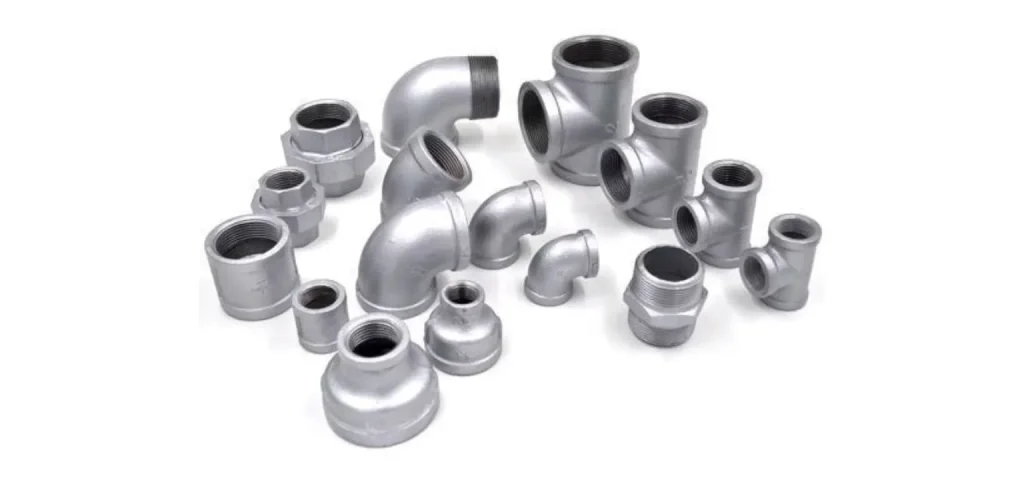

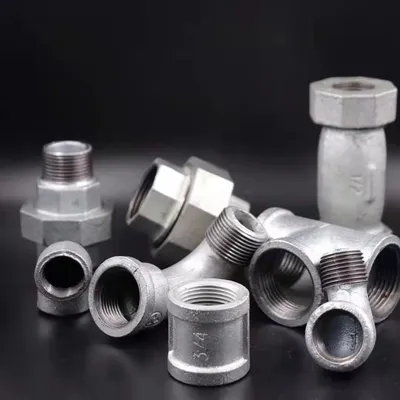

Mallleable Iron Fittings
Size Range: Full range of Hitachi (Gourd Brand)
Types: Galvanized / Black
End Connection: BSPT/NPT Threads
